Lenco Marine Electronic Trim Tabs

Electric Powered:

12 - 24 Volt DC

Electric Actuator:

Instant Response

Blade Type:

4.8mm / 7-Gauge Stainless Steel

Connectors:

Deutsch Plug & Play

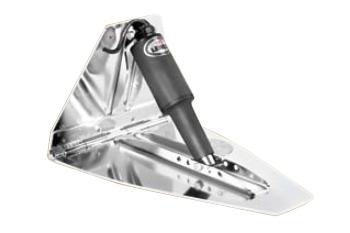

Lenco Super Strong series trim tabs are designed for commercial vessels that require high performance. The stainless steel blade and heavy duty mounting hardware are designed to create a trim tab system that can withstand the rigors of the most demanding conditions. A dual ram system is available for the most extreme-duty applications. Lenco use high-impact, ultraviolet resistant nylon with 50% glass fibre reinforced thermoplastic housing.

Each Lenco Super Strong trim tab kit includes 2 stainless steel trim tab blades manufactured of 4.8mm (7-gauge) laser cut stainless steel to prevent bending or flexing. The stainless steel mounting hardware includes 3.4mm (10-gauge) stainless steel lower and upper mounting brackets. Features include gland seal plus welded 316 stainless steel billet ram ends for extra strength and stitch welded heavy duty stainless steel hinge with 9.5mm (3/8") hinge rod. A 95mm (3 3/4") zinc anode is installed

The instant response, extreme-duty electric actuators for precise control are fully submersible, maintenance-free and sealed for life. 12 to 24 volt actuators include 1.8 metre (6 foot) leads and waterproof ‘plug and play’ Deutsch connectors. Actuator extension harnesses with Deutsch connectors are available separately in various lengths. Two are required for single actuator application or four for dual actuators.

The Lenco trim tab system can be operated by a waterproof tactile LED Indicator switch kit featuring built-in retractor and 2 high-intensity LEDs. The indicator displays show the exact position of trim tabs at all times and there is a self check feature. The indicator switch uses Photo Eye for optimum viewing in all light conditions plus a backlit keypad for optimum viewing at night.

Lenco Marine Electronic Trim Tabs clients include:-

Navy, Coastguard, Law Enforcement, Search & Rescue, professional user information to follow

Contact Details:-

Lenco Marine - 4700 S.E. Municipal Ct., Stuart, Florida 34997 USA TEL +1 772 288 2662
